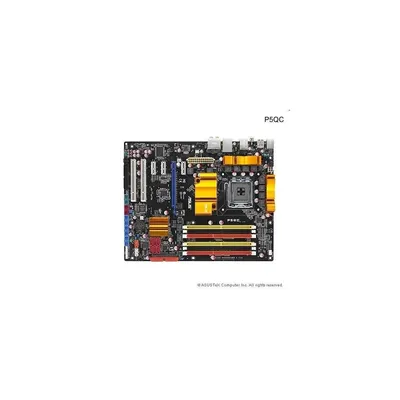

ASUS P5Q-C alaplap AMP5QC Technikai adatlap

Tech. Spec. Info : Combo Memory with DDR2 and DDR3 support!

* Intel® P45 chipset
* ASUS 8-phase Power Design
* Dual-channel DDR3 1333MHz / DDR2 1066 MHz
* 100% High-quality Japan-made Conductive Polymer Capacitors! (5000hrs VRM, over 5 years operation lifespan)
* ASUS EPU-6 Engine
* ASUS Express Gate
* ASUS Drive Xpert
* VRD11.1 CPU support (backward support VRD10.X CPU)


The P5QC is an Intel® P45 chipset-based motherboard that combines powerful performance with great energy efficiency; and supports DDR3 1333 MHz or DDR2 1066 MHz dual-channel memory architecture and PCI Express 2.0 x16 for extreme graphics performance. It also comes with the world´s first ASUS EPU (Energy Processing Unit), allowing the CPU power supply to be digitally monitored and fine-tuned with improved VRM efficiency in heavy or light loadings – attaining the best possible power efficiency and energy savings to help save the environment. The P5QC also supports ASUS Express Gate – an optional Linux OS bootup for instant access to the Internet in 5 seconds.


CPU, Chipset and Graphics features
LGA775 Intel® Core™2 Processor Ready
This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1600/1333/1066/800MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.

PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.


Memory Features
Dual-Channel DDR3 1333 / DDR2 1066
The motherboard supports DDR3 1333/1066/800 MHz or DDR2 memory 1066/800/667 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3/DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 19.2 GB/s.

* DDR2 1066MHz DIMMs work only on the black slots for one DIMM per channel.


ASUS Power Saving Solution
ASUS EPU-6 Engine
System Level Energy Saving
The new ASUS EPU - the world´s first power saving engine, has been upgraded to a new 6 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card, memory, chipset, hard drives and CPU cooler/system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money

AI Nap
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while you´re sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.

ASUS Exclusive Features
ASUS Express Gate
5 Secs Bootup to online
Taking only 5 seconds to go online from bootup, Express Gate is the one-stop gateway to instant fun! It´s a unique motherboard built-in OS. You can utilize the most popular Instant Messengers (IM) like MSN, Skype, Google talk, QQ, and Yahoo! Messenger to keep in touch with friends, or quickly check on the weather and e-mails just before leaving your house. What´s more, the user-friendly picture manager lets you view your pictures without entering Windows at anytime!

* The actual boot time is subject to hardware configurations and product models

ASUS 3rd Generation 8 Phase Power Design
Longer Life, Higher Efficiency!
With power efficiency so important to operating temperatures, ASUS 8-phase VRM design leads the industry with its 96% power efficiency. High quality power components such as low RDS (on) MOSFETs for minimum switching loss lower temperatures, Ferrite core chokes with lower hysteresis loss, and high quality Japanese-made conductive polymer capacitors all add up to ensure longer component life and lower power loss - creating more energy

100% High-quality Japan-made Conductive Polymer Capacitors! (5000hrs VRM)
This motherboard uses all high-quality Japan-made conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.


Asus P5QC műszaki adatok:


CPU
Intel® Socket 775 for Intel® Core™2 Extreme/ Core™2 Quad/ Core™2 Duo/Pentium® dual-core/Celeron® dual-core/Celeron®

Processors
Compatible with Intel® 05B/05A/06 processors
Supports Intel® 45nm Multi-Core CPU


Chipset
Intel® P45 / ICH10R


Front Side Bus
1600/1333/1066/800 MHz


Memory
2 x DIMM, Max. 8 GB, DDR3 1333/1066/800 Non-ECC,Un-buffered Memory
4 x DIMM, max. 16GB, DDR2 1066 / 800 / 667 MHz, Non-ECC, Un-buffered memory

Dual channel memory architecture
When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended
*DDR2 1066MHz DIMMs work only on the black slots for one DIMM per channel. Ensure to install the DDR2 1066MHz DIMMs ONLY on the BLACK slots!
**Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lists).
*** When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.


Expansion Slots
1 x PCIe 2.0 x16
3 x PCIe x1
2 x PCI


Storage
Southbridge
6 xSATA 3 Gb/s ports Intel® Matrix Storage Technology Support RAID 0,1,5,10
Marvell 88SE6111
1 x UltraDMA 133/100/66 for up to 2 PATA devices
Silicon Image SIL5723 (Drice Expert Techology)
2 x SATA 3.0 Gb/s
Supports EZ Backup and SuperSpeed functions


LAN
PCIe Gigabit LAN controller featuring AI NET2


Audio
Realtek ALC 1200, 8 -Channel High-Definition Audio CODEC
DTS Surround Sensation Ultra PC
- Support Jack-Detecting, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial S/PDIF out ports at back I/O
- ASUS Noise-Filtering

IEEE 1394
1394a controller supports 2 x 1394a ports

USB
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)


ASUS Unique Features
ASUS Power Saving Solution:
- ASUS EPU-Six Engine
- ASUS 3rd Generation 8-phase Power Design
- ASUS AI Nap

AI Lifestyle Features:
- Express Gate
- ASUS MyLogo 2

ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Stylish heatsink
- ASUS Fan Xpert

ASUS EZ DIY:
- ASUS Drive Xpert
- ASUS AI Direct Link
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2


Overclocking Features
ASUS AI Booster
Precision Tweaker 2:
- vCore: Adjustable CPU voltage at 6.25mV increment
- vDIMM: 64-step DRAM voltage control
- vChipset (N.B.): 40-step DRAM voltage control
- vCPUPLL: 64-step reference voltage control
- vFSB Termination: 15-step Hyper Transport voltage control

SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 667MHz up to 1333MHz for DDR2
- Memory tuning from 800MHz up to 2000MHz for DDR3
- PCI Express frequency tuning from 100MHz up to180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)


Back Panel I/O Ports
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x S/PDIF Out (Coaxial)
1 x IEEE1394a
1 x RJ45 port
6 x USB 2.0/1.1
8-channel Audio I/O


Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
2 x Drive Xpert SATA connectors
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
8-pin ATX 12V Power connector
System Panel (Q-Connector)


BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4


Manageability
WOL by PME, WOR by PME, WOR by Ring, Chasis Intrusion, PXE


Accessories
1 x UltraDMA 133/100/66 cable
1 x FDD cable
6 x Serial ATA cables
1 x 2-port Serial ATA power cable
1 x multi-function module ( 1 port eSATA and 1 port 4-pin 1394)
1 x Q-Shield
1 x User's manual
1 x 3 in 1 Q-connector


Support Disc

Drivers
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Anti-virus software (OEM version)
Image-Editing Suite


Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
