Tech. Spec. Info :
Intel® H61, 2x1600MHz/16GB, 1xPCI-Ex16 3.0, 3xPCI-Ex1, 4xSATA2, 8xUSB2.0, 2xUSB3.0, DSUB-DVI, 1xGbit LAN

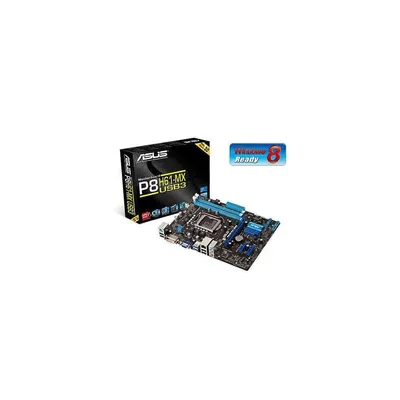

Asus P8H61-MX USB3 alaplap gyártói weboldalAsus P8H61-MX USB3 alaplap
Műszaki adatok
CPUIntel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
* Refer to www.asus.com for CPU support list
ChipsetIntel® H61(B3)
Memória2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
GrafikaIntegrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Bővítőhelyek1 x PCIe 3.0/2.0 x16 *1
2 x PCIe 2.0 x1
TárolásIntel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue
LANRealtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)
AudioVIA VT1708S 8-Channel High Definition Audio CODEC
- Supports : Multi-streaming
USB PortsIntel® H61(B3) chipset :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
ASMedia® ASM1042 controller :
2 x USB 3.0 port(s) (2 at back panel, )
Speciális tulajdonságokASUS Protect Technology :
- Anti-Surge Protection
GPU Boost
ASUS Exclusive Features :
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
- ASUS Q-Fan 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
Hátsó I/O Portok1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s)
Belső I/O portok2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
KellékekUser's manual
I/O Shield2 x SATA 3Gb/s cable(s)
BIOS64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a
KezelhetőségWOL, PXE, PME Wake Up
Support Disc
Drivers
ASUS Utilities
ASUS Update
Anti-Virus Software (OEM Version)
Méret szabványuATX Form Factor
9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm )
Megjegyzések*1: PCIe 3.0 speed is supported by Intel ® 3rd generation processors.
