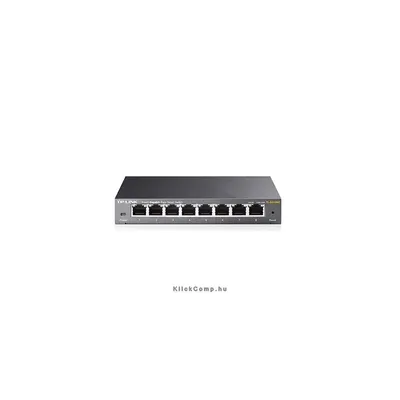

8 Port Switch Gigabit Easy Smart TL SG108E Technikai adatlap

Tech. Spec. Info : 8-Port Gigabit Easy Smart Switch, 8 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping



HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)

Dimensions (W X D X H)
6.2*4.0*1.0 in. (158*101*25 mm)

Fan Quantity
Fanless

Power Consumption
Maximum: 5.46W (220V/50Hz)

Power Supply
100-240VAC, 50/60Hz


PERFORMANCE
MAC Address Table
8K

Packet Buffer Memory
2Mb

Packet Forwarding Rate
11.9Mpps

Jumbo Frame
16KB


SOFTWARE FEATURES
Quality of Service
Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features
IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Transmission Method
Store-And-Forward
