Tech. Spec. Info :
9-tűs mátrix; 3.1 sor/sec.; Soros; ; "Slip" nyomtató formanyomtatványok, csekkek kitöltéséhez. Elsősorban szállodák részére ajánljuk. Grafitszürke burkolat. Opció: tápegység (PS60A)

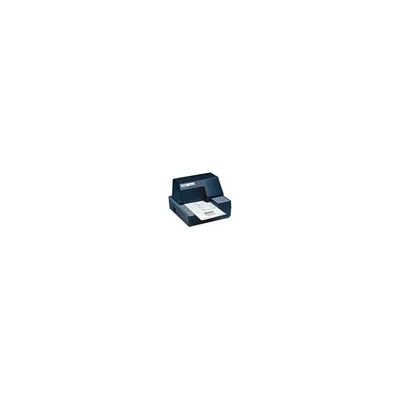

Star SP298 gyártói weboldal Printer Method9 Pin Serial Impact Dot Matrix
Print Speed3.1 Lines Per Second
Printer Case ColorPutty or Gray
Model AvailableSlip Paper Only
Two Color Print CapabilityN/A
No. of Columns42
Print FontFont Size7 x 9
Character Size1.2 (W) x 2.42 (H) mm
Paper SpecificationsWidth3.15 – 7.17 in (80-182 mm)
Length3.15 – 10.8 in (80-257 mm)
Margin Top / Bottom5 / 14 mm
Thickness 1 Ply Paper0.09 - 0.2 mm
Copy Capability 2 PlyOriginal + 1, 0.12 - 0.25
Copy Capability 3 PlyOriginal + 2, 0.12 - 0.25
Minimum Print Width63 mm
Ribbon SpecificationsRC200BBlack (1,200,000 Characters)
RC2000DIndelible Black Ribbon (Laundry Applications)
Cover Open SensorN/A
Multiple Copy SupportOriginal + 2 Copies Maximum
Journal CapabilityN/A
Label SupportN/A
Power SupplyExternal; Requires PS60A External Power Supply
Drivers AvailableWindows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, StarIO SDK
Digitally Signed (WHQL)N/A
Swappable InterfacesN/A
ConnectivitySerial or Parallel
Emulation ModesStar Mode, ESC/POS™
Peripheral Drive Circuit 2 Drivers
Power24V DC / 100-240V AC
Operating ConditionsTemperature: 5oC to 40oC
Humidity: 10% - 80% RH (without condensation)
Storage ConditionsTemperature: -20oC to 60oC
Humidity: 5% - 90% RH
Dimensions180(W) x 190(D) x 138.5(H) mm
Weight
2.1 kg
Safety StandardsUL, C-UL, TüV, CB, FCC CE
Reliability MCBF9 Million Lines
Print Head70 Million Characters
Included with PrinterRibbon Cartridge, User Manual, Ferrite Core
