Tech. Spec. Info :
Nagyteljesítményű vezeték nélküli megoldás / Három,minden irányba sugárzó antennával kapható,amelyek célja a lefedettség növelése és a tiszta vételi jel biztosítása / Draft IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE 802.3,IEEE 802.3u,IEEE 802.3af (Power over Ethernet),802.1x (security authentication),802.11i security WPA/WPA2,WMM

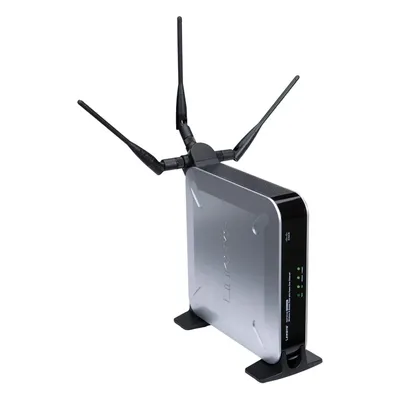

Cisco WAP4410N Wireless-N Access Point - PoE/Advanced Security gyártói weboldalCisco WAP4410N Wireless-N Access Point - PoE/Advanced Security
Műszaki adatok
StandardsDraft IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.3af (Power over Ethernet), 802.1x (security authentication), 802.11i security WPA/WPA2, WMM
PortsEthernet, Power
ButtonsReset
Cabling typeUnshielded twisted pair (UTP) Category 5e or higher
LEDsPower, Ethernet, Wireless, PoE
Operating systemLinux
Setup/ConfigurationWeb user interface
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
ManagementSimple Network Management Protocol (SNMP) version
SNMP version 1, 2c
Event logging
· Event logging
· Email logging
· Remote syslog
Web firmware upgrade
Firmware upgradeable through web browser
Diagnostics.
Flash, RAM, LAN, WLAN
Dynamic Host Configuration Protocol (DHCP)
DHCP client
HTTP Redirect
Redirects initial user access to an external web server to display company logo or network usage policy
IPv6 host
· Support for management and control of access point over IPv6
· Supports RFC2460 (IPv6 protocol) and RFC4294 (IPv6 node requirements)
Network CapabilitiesMultiple BSSID
Supports up to 4 BSSIDs, allowing the creation of multiple virtual access points
VLANs
Supports 802.1q - up to 4 VLANs
SSID to VLAN mapping
Supports mapping of SSIDs to VLANs to securely separate workgroups across wireless and wired domains
Spanning Tree
Supports 802.1d Spanning Tree Protocol to prevent loops when using wireless distribution system (WDS) links as redundant links in a distribution system
Operating modes
Access point mode, point-to-point bridge mode, point-to-multipoint bridge mode, repeater mode, wireless client mode
Load balancing
Allows bandwidth control with user-defined CPU usage ratios
Auto-channel selection
On boot-up, the access point selects the least congested channel
802.11d regulatory domain
Enables the access point to provide radio channel settings for client devices, facilitating easy client access as they move across regulatory domains
SecurityWEP/WPA/WPA2
Wired Equivalent Privacy (WEP) 64-bit/128-bit, WPA-Pre-Shared Key (WPA-PSK), WPA2-PSK, WPA-ENT, WPA2-ENT
Access control
Wireless connection control: MAC-based
SSID broadcast
SSID broadcast enable/disable
Client isolation
Supports wireless client isolation between and within SSIDs
802.1X
Wireless clients can be authenticated through IEEE 802.1X
802.1X supplicant
Supports 802.1X supplicant on the Ethernet port to allow the access point to authenticate itself to the network
RADIUS server
Up to 2 RADIUS servers can be configured for redundancy purposes
WPS
Supports WPS, a WI-FI Alliance specification for simple and secure setup of a wireless network
Rogue access point detection
New access points detected that have not been categorized as known are logged as rogue access points, allowing the administrator to clamp down on unapproved devices in the network
WirelessSpec/modulation
Radio and modulation type: 802.11b/DSSS, 802.11g/OFDM, 802.11n/OFDM
Channels
Operating channels: 11 North America, 13 most of Europe (ETSI and Japan)
Internal antennas
None
External antennas
3 (omnidirectional)
Transmit power
Transmit power @ normal temp range for FCC:
802.11b: 16 dBm @ 1TX, 19 dBm @ 2TX, 20.5 dBm @ 3TX
802.11g: 13 dBm @ 1TX, 16 dBm @ 2TX, 17.5 dBm @ 3TX
802.11n: 17 dBm @ 1TX @ MCS0~5/8~13, 13 dBm @ 1TX @ MCS6/14,
11 dBm @ 1TX @ MCS7/15, 20 dBm @ 2TX@MCS0~5/8~13,
16 dBm @ 2TX @ MCS6/14, 14 dBm @ 2TX @ MCS7/15,
21.5 dBm @ 3TX@MCS0~5/8~13, 17.5 dBm @ 3TX @ MCS6/14,
15.5 dBm @ 3TX @ MCS7/15
Transmit power @ normal temp range for ETSI:
11b/g/n: 13 dBm @ 1TX, 16 dBm @ 2TX, 17.5 dBm @ 3TX
Antenna gain in dBi
2
Receiver sensitivity
802.11.n: 300 Mbps at -69dBm
802.11.g: 54 Mbps at -73dBm
802.11.b: 11 Mbps at -88dBm
Dimensions W x H x D
6.69 x 6.69 x 1.60 in.
(170 x 170 x 40.7 mm)
Weight0.86 lb (39 kg)
Power· 12V 1A DC input, and IEEE 802.3af compliant PoE
· Max power draw: 10.1W
CertificationFCC, CE, IC
Operating temperature32° to 104°F (0° to 40°C)
Storage temperature-4° to 158°F (-20° to 70°C)
Operating humidity10% to 85%, noncondensing
Storage humidity5% to 90%, noncondensing
Package Contents· Cisco WAP4410N Wireless-N Access Point with PoE
· User guide on CD-ROM
· Ethernet network cable
· Power adapter
· Product stands
· Registration card
Minimum Requirements· 802.11b, 802.11g, 802.11n wireless adapter with TCP/IP protocol installed per PC
· Switch/router with PoE support or PoE injector when used with PoE
· Web-based configuration: Java-enabled web browser
